TM100 Key Programmer error: Create progress failed; code 3

Have got authorization of TM100 key programmer for Toyota, Peugeot, Ford, Citroën, Mercedes-Benz. But the program popped up errors like “Connection warning: TM100 interface need refalsh (part 1)” or “Create progress failed; code 3”… Here are UOBD2 engineers’ suggestion.
TM100 error message:

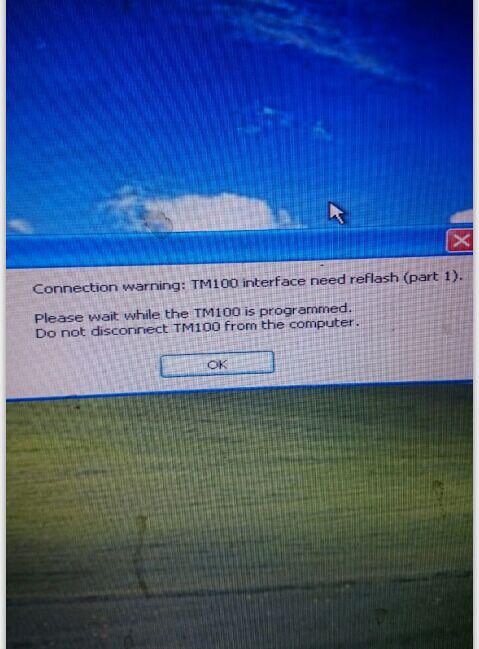

Connection warning: TM100 interface need refalsh (part 1).

Please wait while the TM100 is programmed.

Do not disconnect TM100 from the computer.

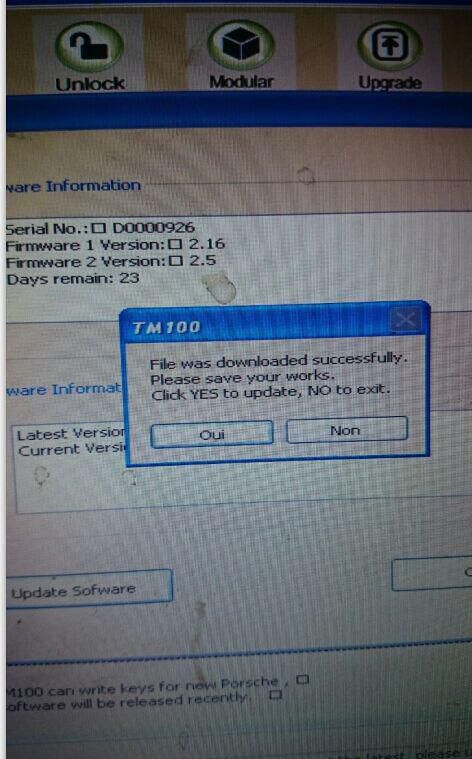

File was download successfully.

Please save your work.

Click YES to update, NO to exit.

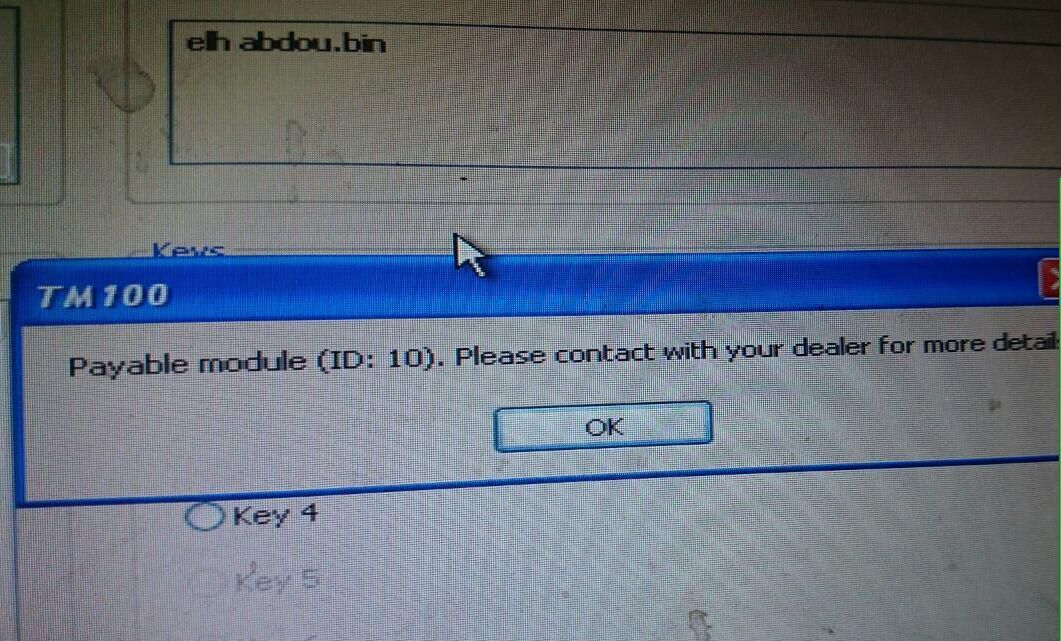

Payable module (ID:10). Please contact with your dealer for more details.

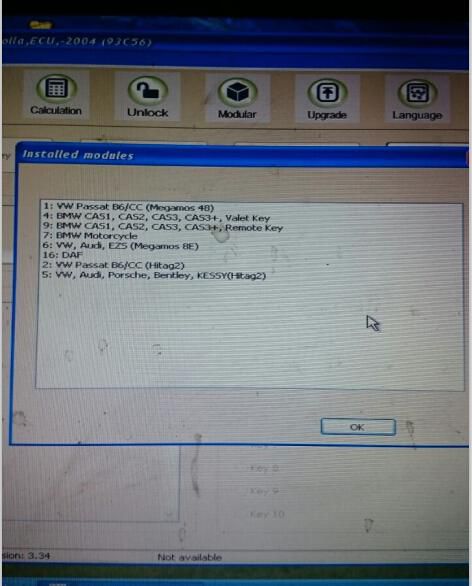

Installed modules

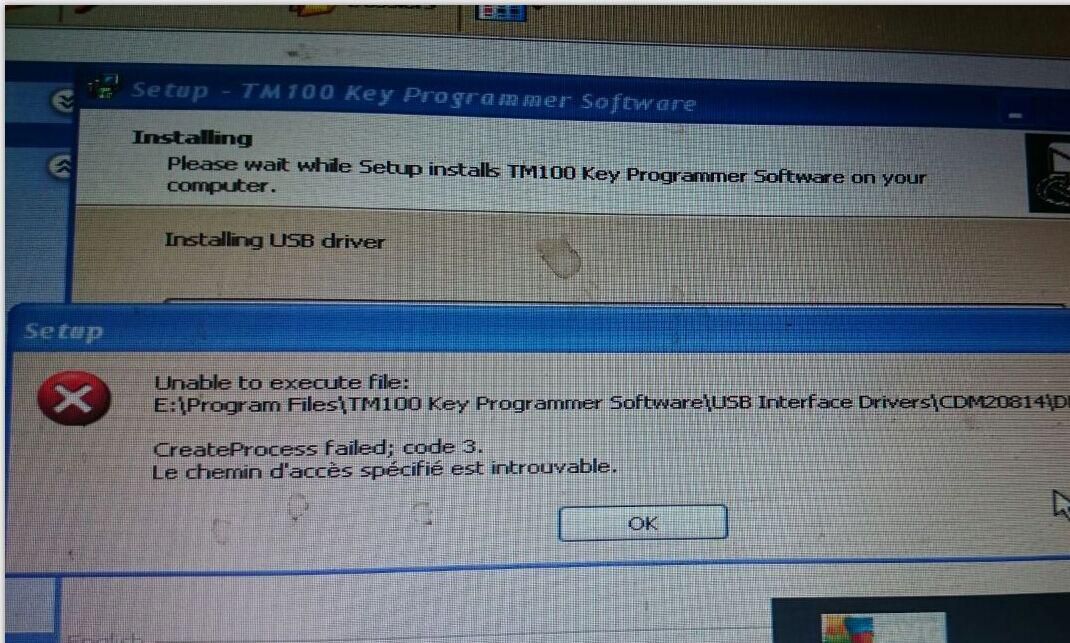

Unable to execute file

Create progress failed; code 3

solutions:

Uninstall all TM100 software and files concerned.

Then install TM100 software again.

TM100 key programming software installation tips:

– O.S.:

Windows XP(SP2 or later) Professional Version;

Windows 7 Ultimate;

Windows 8 Professional.

– TM100 installation instruction:

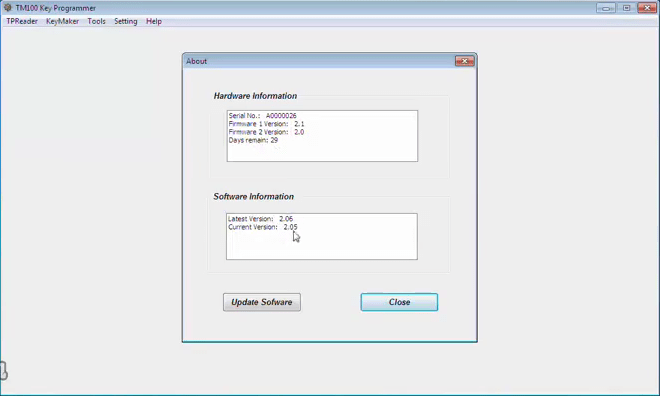

After activation, you will be able to check the TM100 key pro hardware and software version information

Click 【Update Software】button
Downloading new software from server and it will take several minutes, please wait
After that the system will display a windows prompting “File was downloaded successfully, please save your work”, click YES to update
Update is processing
Back to software main menu
Click Help tab
Click About to check the software that has been updated and installed.

– attached file:

V3.28 TM100 key programmer user manual

Other Problem TM100 Key Programmer: Solution for TM100 key programmer system error mfc110u.dll missing  click it to read.
