VVDI PROG Programmer V1.1 user guide
VVDI Prog programmer is the upgrade version of VVDI, to help more people know this tool, the poster write this post, this post consist of main unit picture, pcb board pictures, update history, main features, parts list, adapter description, supported chip list, etc.

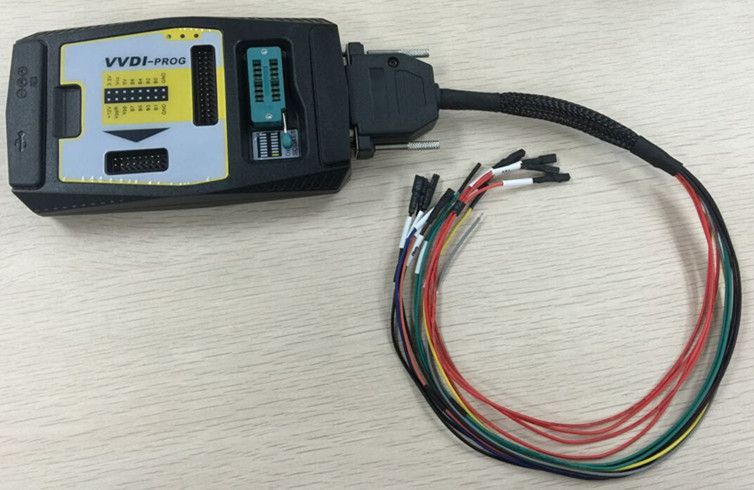

VVDI PROG Programmer V1.1 main unit

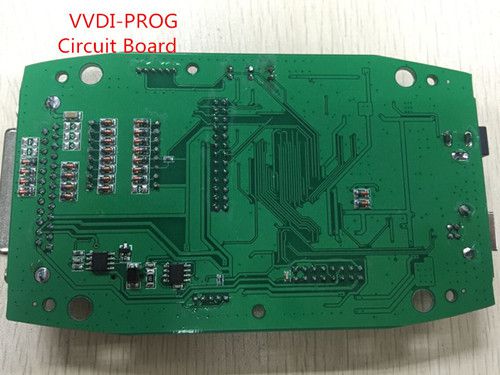

VVDI PROG Programmer V1.1 PCB board
Update History
| Version | Update Date | Details |
| 1.0 | 2015-03-18 | Initial Version |
| 1.1 | 2015-07-27 | Add the read & write function for BMW engine
Add pin code calculator for multi-brand vehicle models. |
- VVDI Prog Brief Introduction
1.1 Main Feature

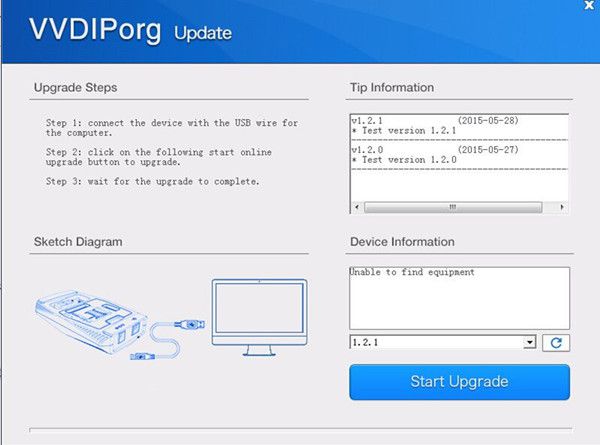

- The built-in update software allows user to update VVDIProg firmware timely.
- High-speed USB communication interface enable the software automatically connect.
- Smart operation mode: the possible causes of error will be listed
- Reserve ports: for future update.
- The self-test function enable you check if the machine works well.
- Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed.
1.2 Parts List
| Parts | Number | Remark |
| Programmer multiplexer | 1 | |
| Square USB cable | 1 | |
| SOP16 test socket | 1 | |
| 16pin converter | 1 | Support SOP/SOT/SSOP |
| MCU reflash cable | 1 | |
| ECU reflash cable | 1 | |
| MC9S12 reflash cable | 1 | Used to program MC9S12 series chip |
| 12V3A power adapter | 1 | High quality power supply |
1.3 Adapters Detailed Description

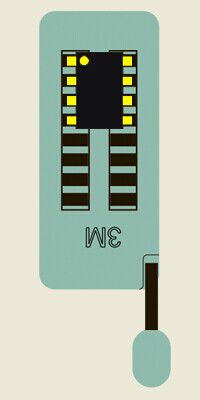

1.3.1 16pin locking socket
Read the common EEPROOM, note: please insert the chip by following the below picture.
1.3.2 MCU Reflash cable
Used to program MCU on board
1.3.3 ECU Reflash cable
Used to program ECU

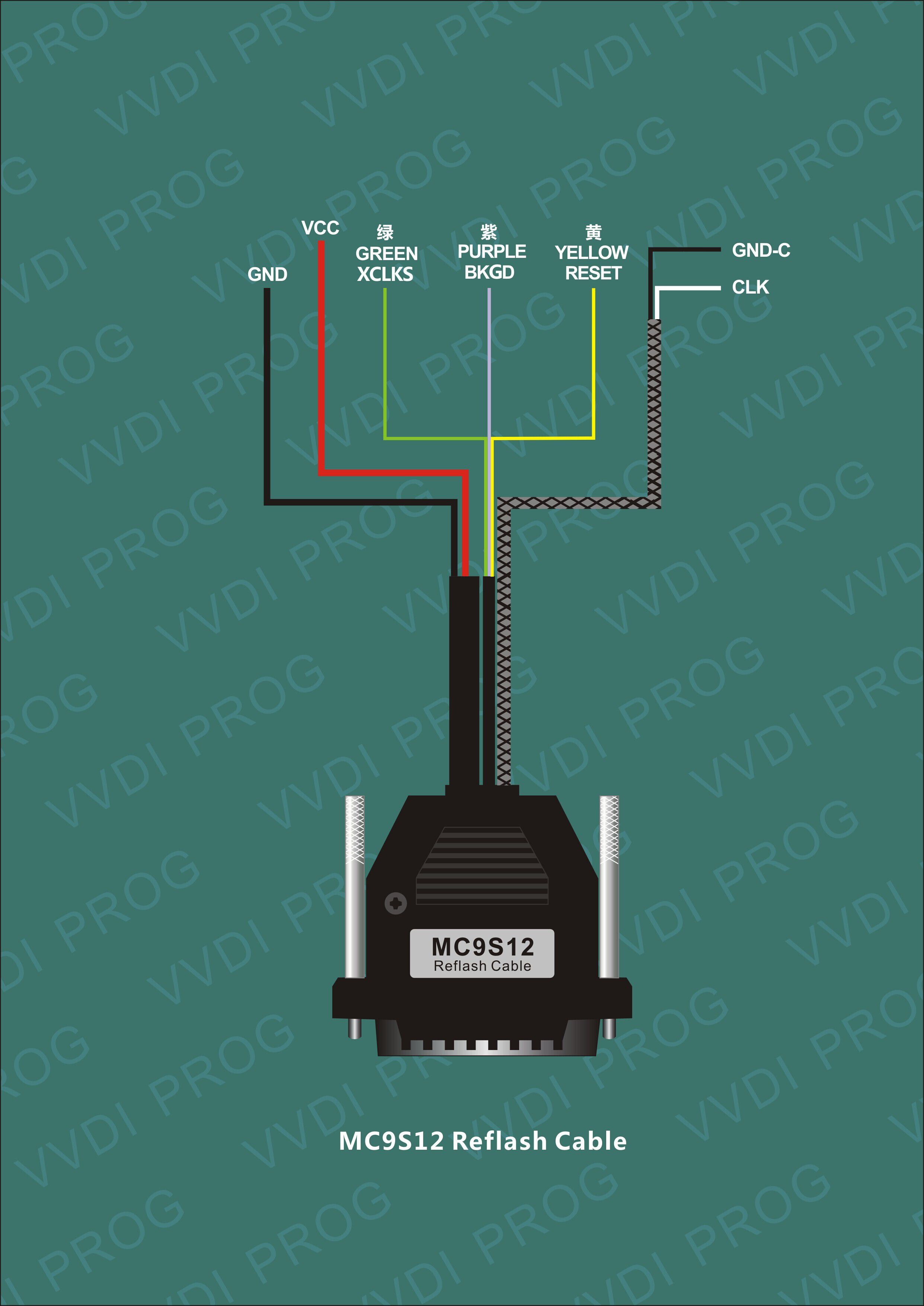

1.3.4 MC9S12 Reflash cable
Used to program MC9S12 series chip
- Supported chip list
2.1 EEPROM
| Manufactures | Types | Support | Remark |
| ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| GRUNDIG | GRXX | R | |
| HOLTEK | HT93CX6 | R | |
| MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| MITSUBISHI | M6M800X1 | R | |
| SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
| NEC | M24CXX | R | |
| ST | ST24CXX | R | |
| ST24EXX | R | ||
| ST24WXX | R | ||
| ST25CXX | R | ||
| ST25EXX | R | ||
| ST95P0X | R |
Note: R means the type is supported, £ means the type will be supported in the future
2.2 MCU
| Manufactures | Types | Support | Remark |
| MOTOROLA | MC9S12XEP | R | Can automatically determine D-FLASH/EEE space |
| MC9S12XA | R | ||
| MC9S12XB | R | ||
| MC9S12XD | R | ||
| MC9S12XDT | R | ||
| MC9S12XDP | R | ||
| MC9S12XDQ | R | ||
| MC9S12DG | R | ||
| MC9S12DT | R | ||
| MC9S12P | R | ||
| MC9S12H | R | ||
| MC9S12HY | £ | ||
| MC9S12HA | £ | ||
| MC9S12HZ | £ | ||
| MC9S12XHZ | £ | ||
| MC9S12B | £ | ||
| MC9S12GC | £ | ||
| MC9S12XS | £ | ||
| MC9S12K | £ | ||
| MC9S12Q | £ | ||
| MC9S12C | £ | ||
| MC9S12P | £ | ||
| MC9HC(9)08 | £ | ||
| ATMEL | ATTINY | £ | |
| ATMEGEA | £ | ||
| NEC | uPD70F | £ | |
| ST | TMS370 | £ |
Note: R means the type is supported £ means the type will be supported in the future.
2.3 ECU
| Manufactures | Types | Support | Remark |
| VAG | MED17.1-TC1796 | £ | |
| MED17.11-TC1796 | £ | ||
| VAG MEG17.5-TC1766 | £ | ||
| VAG MED17.5.1-TC1796 | £ | ||
| VAG MED17.5.2-TC1767 | £ | ||
| VAG MED17.5.5-TC1766 | £ | ||
| VAG MED17.5.20-TC1766 | £ | ||
| VAG EDC17 CP14/CP20-TC1796 | £ | ||
| VAG EDC17 CP04-TC1796 | £ | ||
| VAG EDC17 C46-TC1767 | £ | ||
| VAG EDC17 CP24-TC1796 | £ | ||
| VAG EDC17 CP44-TC1797 | £ | ||
| VAG EDC17 U01-TC1766 | £ | ||
| VAG EDC17 U05-TC1796 | £ | ||
| VAG/Porsche Siemens Continental SDI 3-
TC1796 |
£ | ||
| BMW | MEVD172(N55) | R | |
| MEVD172P(N20) | R | ||
| MEVD172G(N55) | R | ||
| MEVD172S(N55) | R | ||
| MEVD1724(N20) | R | ||
| MEVD1725(N13) | R | ||
| MEVD1726(N55) | R | ||
| MEVD1729(N20) | R | ||
| MEVD1728(N63/S63) | R |
Note: R means the type is supported £ means the type will be supported in the future.
